Electromagnetic Water Flow Meter – High Accuracy Digital Industrial Water Meter (DN10–DN2000)
Original price was: ر.س3,800.00.ر.س3,599.00Current price is: ر.س3,599.00.

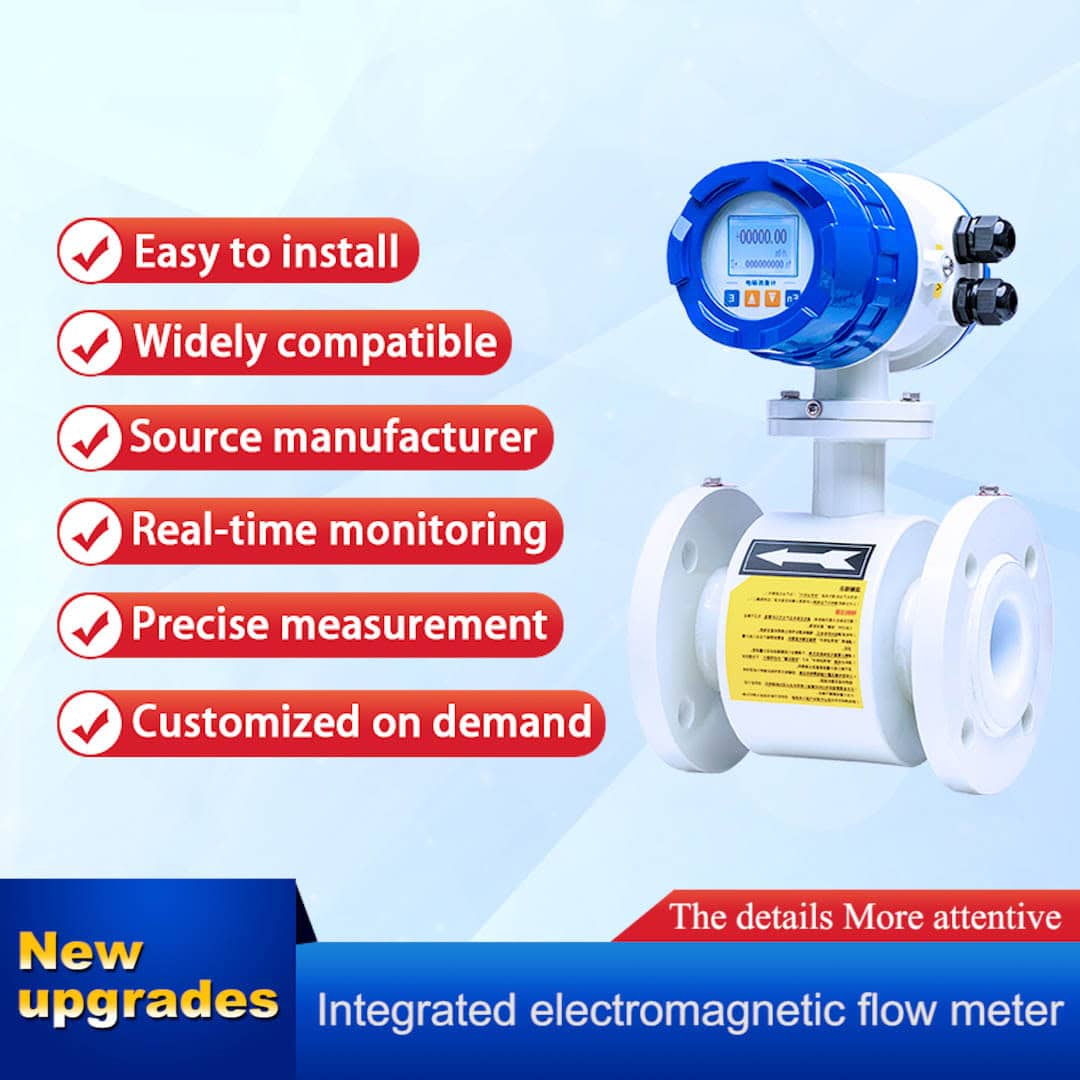

Electromagnetic Flow Meter designed for accurate and reliable water flow measurement in industrial and commercial applications. This digital flow meter offers maintenance-free performance with a corrosion-resistant body, stainless steel electrodes, LCD display, ANSI flange connection, and IP65/IP68 protection. Suitable for pipelines, utilities, water treatment plants, process industries, and municipal water systems where long-term stable operation and high accuracy are required.

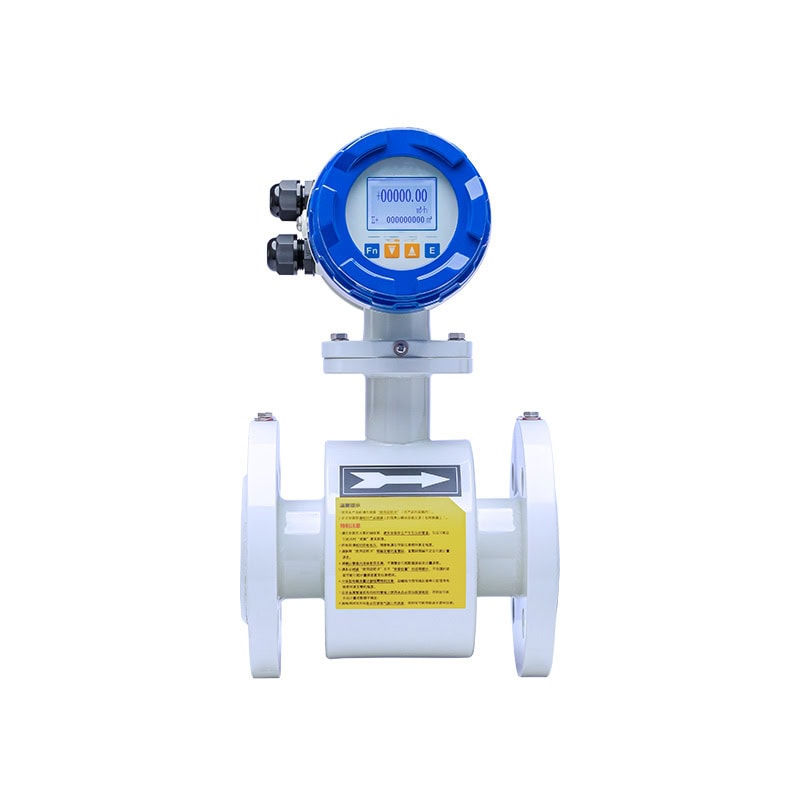

Electromagnetic Water Flow Meter DN150 (Digital LCD Display)
The Electromagnetic Flow Meter DN150 provides precise flow measurement for water and industrial fluids. Designed for high accuracy and long operating life, it features a durable carbon steel body with SS316L electrodes and a PTFE lining for excellent corrosion resistance.
⭐ Key Features
-
High-accuracy measurement: ±0.5%
-
Integrated LCD display
-
24VDC power supply
-
ANSI 150 flange connection
-
Output: 4–20mA, RS485 + Pulse
-
IP65 protection rating
-
Suitable for water, oil, and industrial pipelines
? Technical Specifications
| Specification | Details |
|---|---|
| Size | DN150 |
| Flow Range | 32–630 m³/hr |
| Material | Carbon steel body |
| Electrode | SS316L |
| Lining | PTFE |
| Pressure | 2.0 MPa |
| Temperature | −20°C to +60°C |
| Power | 24VDC |
| Output | 4–20mA + RS485 + Pulse |

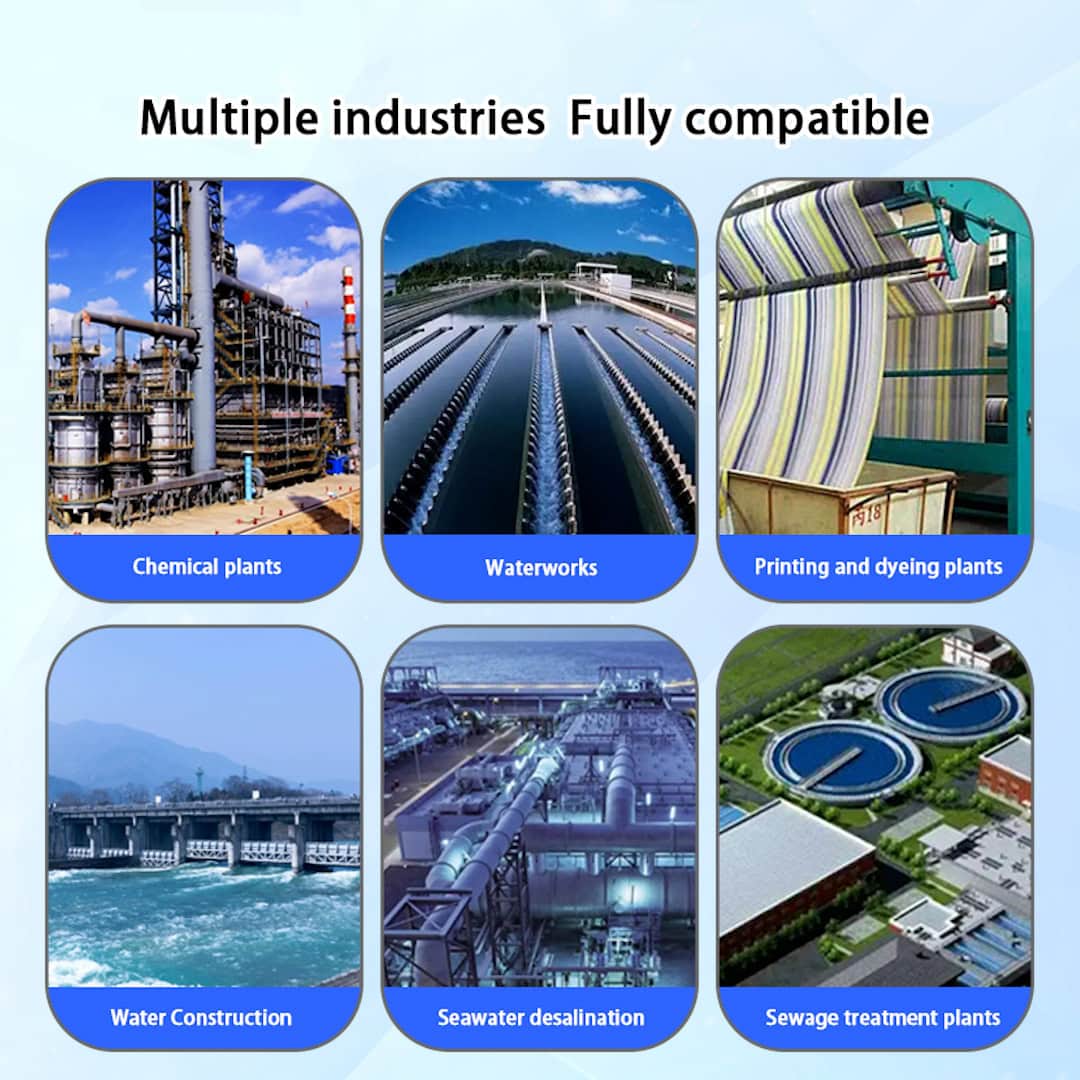

? Applications
-
Water treatment
-
Industrial pipelines
-
Oil & Gas systems
-
Chemical processing
-
Firefighting and pumping systems
? Why Choose This Flow Meter?
-
Easy installation
-
Highly durable
-
Industrial grade build
-
Designed for long-term performance
Check our other Flow Meters and Valves.
CI Flanged Water Meter – https://store.rawabialmahfar.com/product/water-meter/
Multi Jet Water Meter – https://store.rawabialmahfar.com/product/surefix-multi-jet-water-meter-pn16-npt-threaded-cold-hot-water-ci-body/
Ultrasonic Water Meter – https://store.rawabialmahfar.com/product/ultrasonic-bulk-water-meters/
| Size | DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800, DN900, DN1000, DN1200, DN1400, DN1600, DN1800, DN2000 |
|---|
