Fireguard Butterfly Valve Grooved End & Wafer Type 300 PSI Saudi Arabia

The Fireguard Butterfly Valve Grooved End & Wafer Type 300 PSI  is a high-performance indicating butterfly valve specifically designed for fire protection systems. Manufactured by Fireguard UK, this valve is engineered to provide reliable flow control, visual position indication, and supervisory monitoring in fire sprinkler installations.

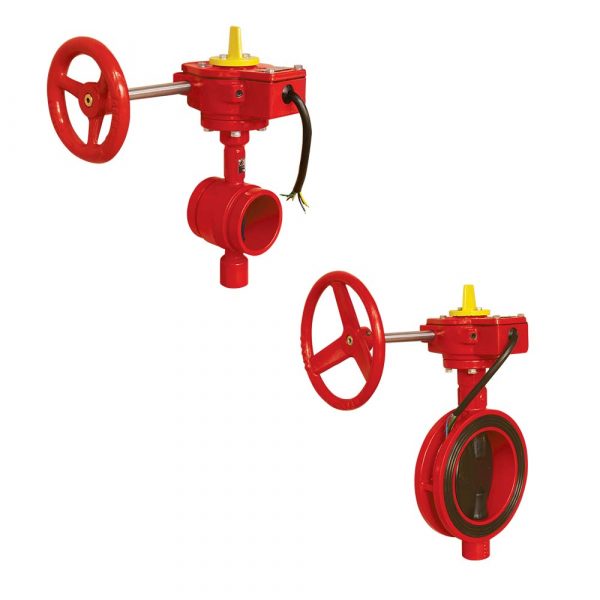

These butterfly valves are available in both grooved end and wafer type configurations, making them suitable for a wide range of piping systems. The grooved end connections allow quick and secure installation using approved grooved couplings, while the wafer type design enables compact installation between flanges. This flexibility makes the valve ideal for system control, sectional isolation, and pump control applications.

A key feature of the Fireguard Butterfly Valve is its indicating type mechanism, which provides a clear visual indication of whether the valve is in the open or closed position. This is critical in fire protection systems, where valve status must always be easily verified to ensure system readiness.

For enhanced safety and monitoring, the valve is equipped with gear operators that include factory-installed supervisory switches. These switches are designed with SPDT (Single Pole Double Throw) contacts and activate when the valve moves from its normal open position. Notably, the switches trigger within the first two revolutions of the handwheel, ensuring early detection of valve movement and allowing integration with fire alarm control systems.

The Fireguard Butterfly Valve Grooved End & Wafer Type 300 PSI Saudi Arabia is designed to operate at a maximum working pressure of 300 PSI (20.7 bar), making it suitable for high-pressure fire protection systems. It is available in sizes ranging from 2½” (DN65) up to 12” (DN300), covering a wide range of commercial and industrial applications.

The valve body is constructed from ductile iron conforming to ASTM A395 standards, ensuring excellent strength, durability, and resistance to mechanical stress. The disc is also made of ductile iron with a protective polyamide coating, providing corrosion resistance and long service life. The seat is made of EPDM encapsulated rubber (ASTM D2000), ensuring tight sealing and reliable performance under varying conditions. The upper and lower stems are manufactured from Type 416 stainless steel, offering strength and corrosion resistance.

Installation of the valve is highly versatile. It can be installed in both horizontal and vertical orientations, and flow can be in either direction. This flexibility simplifies system design and installation. However, it is important that all installations comply with NFPA standards and local fire safety regulations to ensure proper operation.

The valve is UL Listed and FM Approved, confirming its compliance with international fire protection standards. This makes it suitable for projects in Saudi Arabia where strict compliance is required, such as commercial buildings, industrial plants, and infrastructure projects.

Maintenance of the Fireguard Butterfly Valve is straightforward but essential. Regular inspection, testing, and maintenance must be carried out in accordance with NFPA guidelines (such as NFPA 25). The system owner is responsible for ensuring that the valve and associated fire protection components remain in proper working condition at all times.

The datasheet also highlights friction loss characteristics based on the Hazen-Williams formula, ensuring engineers can accurately design systems with predictable performance. For example, equivalent pipe length values are provided for different valve sizes, aiding in hydraulic calculations.

Overall, the Fireguard Butterfly Valve Grooved End & Wafer Type 300 PSI Saudi Arabia is a reliable, durable, and fully compliant solution for fire protection systems. Its indicating functionality, supervisory switches, and robust construction make it an essential component in ensuring system safety and operational readiness.

---

🔧 Key Features

• Indicating type butterfly valve (open/close position visible)
• Grooved end & wafer type configurations
• UL Listed and FM Approved
• Gear operator with supervisory switches (SPDT contacts)
• Activates alarm signal within first two handwheel turns
• High pressure rating – 300 PSI (20.7 bar)
• Suitable for horizontal & vertical installation
• Durable ductile iron body with EPDM seat

---

⚙️ Technical Specifications

• Model: FG-BO-G / FG-BO-W
• Type: Butterfly Valve (Grooved & Wafer)
• Pressure Rating: 300 PSI (20.7 bar)
• Size Range: 2½” to 12” (DN65–DN300)
• Body Material: Ductile Iron (ASTM A395)
• Disc Material: Ductile Iron (Polyamide Coated)
• Seat Material: EPDM (ASTM D2000)
• Stem Material: Stainless Steel (ASTM A582 Type 416)
• Certification: UL Listed, FM Approved

---

🏗️ Applications in Saudi Arabia

• Fire sprinkler systems
• Pump control valves
• Sectional isolation in fire lines
• Industrial & commercial fire protection systems
• Warehouses and high-rise buildings

---

📊 Datasheet Reference

Key highlights from datasheet:

• Indicating type with supervisory switches
• Suitable for grooved coupling systems
• 300 PSI pressure rating
• Available in sizes DN65–DN300
• Durable construction with EPDM sealing
