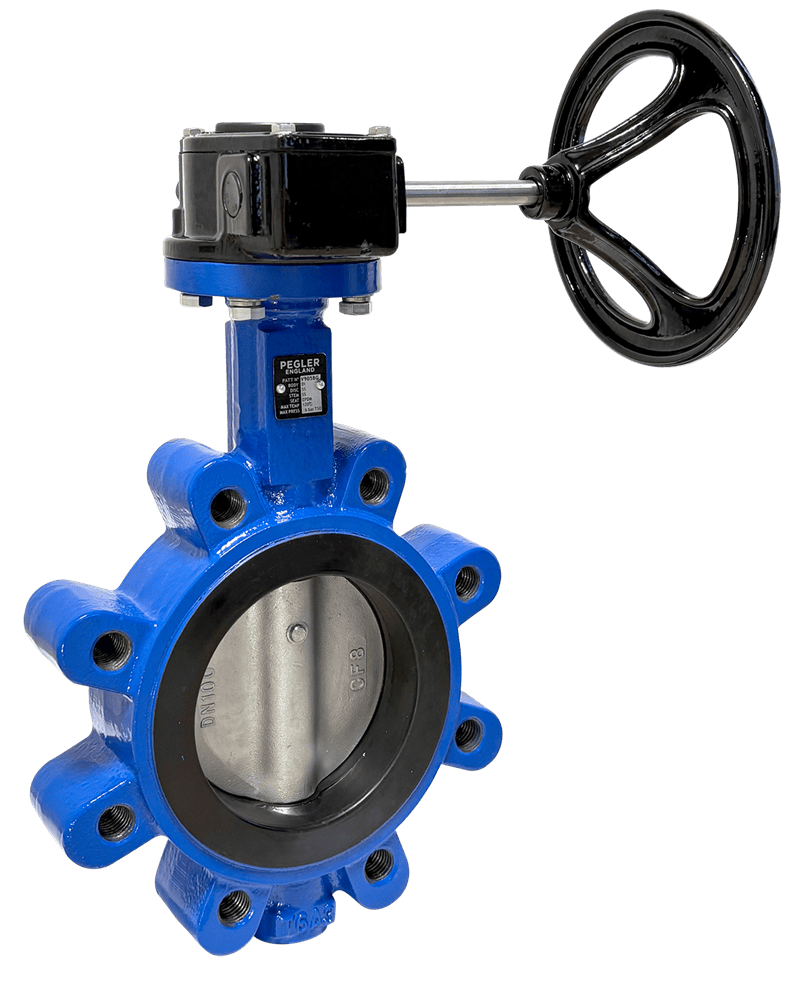

Pegler butterfly valve fully lugged with gear (2 x flange) V905BG

The V905BG Pegler butterfly valve with “end of line” rating is designed to be very compact and lightweight. Pegler butterfly valves are easy to operate with a lever (type SV905) or a (delayed) handwheel. The range includes WAFER and LUG versions; PN16 and PN25.

working pressure PN16 and PN25; end of line rated
operating temperature -10°C to 120°C
ISO5211 mounting plate
IP68, Lockable geared mechanism
extended input shaft, suitable for insulation
resilient vulcanised seals – EPDM
low operating torque
ISO flanges according to BS EN1092-1
WRAS approved

datasheet

Weight	N/A
Dimensions	N/A
Size	PN16 – DN50, PN16 – DN65, PN16 – DN80, PN16 – DN100, PN16 – DN125, PN16 – DN150, PN16 – DN200, PN16 – DN250, PN16 – DN300, PN16 – DN350, PN16 – DN400, PN16 – DN450, PN16 – DN500, PN16 – DN600, PN25 – DN50, PN25 – DN65, PN25 – DN80, PN25 – DN100, PN25 – DN125, PN25 – DN150, PN25 – DN200, PN25 – DN250, PN25 – DN300, PN25 – DN350, PN25 – DN400, PN25 – DN450, PN25 – DN500, PN25 – DN600
