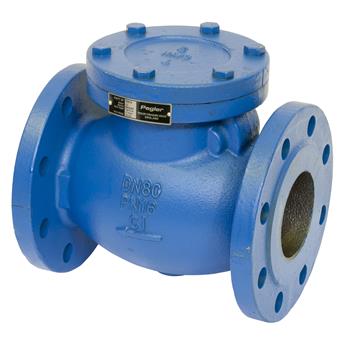

Pegler Check Valve Swing Type V914 Saudi Arabia

The Pegler Check Valve Swing Type V914 Saudi Arabia is a heavy-duty, high-performance non-return valve designed to prevent backflow in piping systems and ensure smooth, uninterrupted fluid movement. Manufactured by Pegler, a globally recognized brand with over 100 years of engineering expertise, this valve is built for durability, reliability, and long-term performance in demanding industrial and commercial environments across Saudi Arabia.

The Pegler Check Valve Swing Type V914 Saudi Arabia is constructed from high-quality cast iron (EN-GJL-250 / GG25), offering excellent mechanical strength and resistance to wear and pressure. The valve features a swing-type disc mechanism, which automatically opens with forward flow and closes when reverse flow occurs, preventing damage to pumps, pipelines, and equipment.

This valve is specifically designed for high velocity liquid applications, making it ideal for systems where flow direction must remain constant and backflow prevention is critical. It is primarily intended for horizontal installation, but it can also be used in vertical pipelines under suitable conditions, offering flexibility in system design.

The Pegler Check Valve Swing Type V914 Saudi Arabia is equipped with flanged connections compliant with EN1092-2, ensuring secure installation and compatibility with standard piping systems. It operates at a maximum pressure rating of PN16 (16 bar) within a temperature range of -10°C to 120°C, and can handle elevated temperatures up to 230°C at reduced pressure (11.8 bar), making it suitable for both standard and high-temperature applications.

According to the datasheet (page 1 & 2), this valve is widely used in non-potable water systems, heating systems, cooling systems, and industrial pipelines . The technical diagrams and dimension tables on page 2 and 3 provide detailed insights into installation requirements, flange specifications, and valve geometry for sizes ranging from DN65 to DN300.

The valve incorporates EPDM sealing, ensuring reliable shut-off and minimizing leakage. The internal design is optimized for smooth flow with minimal resistance, reducing pressure loss and improving overall system efficiency. Additionally, the valve is finished with a protective coating, enhancing corrosion resistance and extending service life in harsh environmental conditions.

Available in sizes from DN65 to DN300, the Pegler Check Valve Swing Type V914 Saudi Arabia is suitable for medium to large-scale pipeline systems. The valve weights range from approximately 17.8 kg to 292 kg, ensuring robust construction while maintaining manageable installation requirements.

One of the key advantages of this valve is its self-acting operation, which eliminates the need for manual control and reduces maintenance requirements. This makes it an efficient and cost-effective solution for long-term use in industrial and commercial applications.

For additional insights into valve applications and standards in Saudi Arabia, you can explore:

Explore more Pegler products here:

https://store.rawabialmahfar.com/product-category/pegler-valves/

Overall, the Pegler Check Valve Swing Type V914 Saudi Arabia is a reliable, durable, and efficient solution for preventing backflow and protecting piping systems in modern infrastructure and industrial applications.
