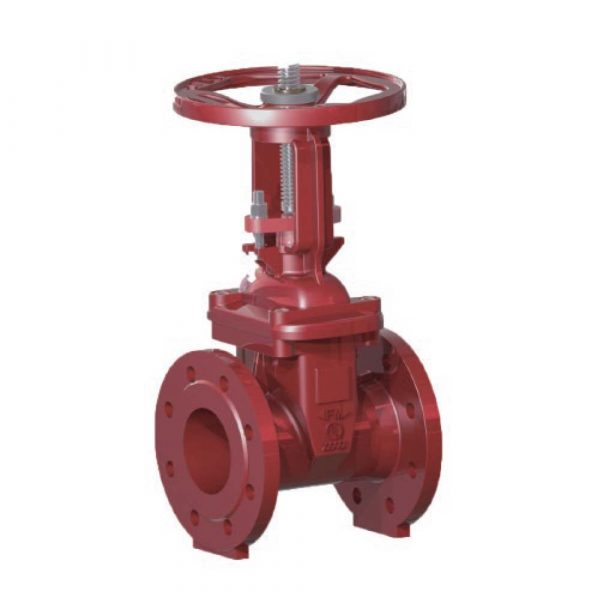

Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia

The Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia is a premium resilient seated gate valve designed for fire protection systems, industrial pipelines, and water distribution networks. Built to meet international standards and certifications, this valve ensures reliable shut-off performance, durability, and safety in critical applications.

The Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia features an OS&Y (Outside Screw and Yoke) design, which provides a clear visual indication of valve position. When the valve is open, the stem rises, and when closed, it lowers—allowing operators to easily identify the valve status. This feature is essential in fire protection systems where operational visibility is critical.

This valve is designed with flanged end connections, ensuring strong, leak-proof installation in piping systems. It complies with international standards such as AWWA C515 and BS5163, ensuring high-quality manufacturing and performance consistency. Additionally, the valve is coated with fusion bonded epoxy that complies with AWWA C550, providing excellent corrosion resistance and long service life.

The Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia operates at a maximum working pressure of 300 PSI, making it suitable for high-pressure fire protection systems. It is also designed to operate within a wide temperature range of -10°C to 120°C, making it versatile for different environmental conditions.

Internally, the valve uses a resilient seated wedge made from ductile iron fully coated with EPDM rubber. This design ensures tight sealing, zero leakage, and smooth operation. The EPDM coating provides resistance to wear, corrosion, and chemical exposure, ensuring long-term reliability.

The valve body and bonnet are constructed from ductile iron (ASTM A536), offering excellent strength and durability. The stem is made from stainless steel (AISI 304/420), providing corrosion resistance and smooth operation. The wedge nut is also stainless steel, while the stem nut is bronze, ensuring efficient torque transmission and long operational life.

The valve also includes high-quality sealing components such as EPDM gaskets and PTFE packing, which enhance sealing performance and prevent leakage. The handwheel is made of ductile iron, providing durability and ease of operation even in demanding environments.

The Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia is available in sizes ranging from 2” to 12”, making it suitable for a wide range of applications. Its flanged ends conform to ANSI B16.1 / B16.42 Class 125/150 and EN1092-2 PN16 standards, ensuring compatibility with standard piping systems.

Installation of the valve is straightforward and should be done in accordance with fire protection standards and manufacturer guidelines. The OS&Y design also allows easy maintenance and inspection, as the stem movement provides a clear indication of internal operation.

This valve is UL Listed and FM Approved, ensuring compliance with global fire safety standards. It is widely used in Saudi Arabia for fire sprinkler systems, fire water pipelines, industrial facilities, and infrastructure projects where safety and compliance are essential.

The Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia is a trusted solution for engineers, contractors, and facility managers who require a reliable, durable, and compliant valve for fire protection systems.

🔧 Key Features

Fireguard FGO907-300 OS&Y Gate Valve Saudi Arabia with visual position indication
Outside Screw & Yoke (OS&Y) design
Flanged end connections
UL Listed and FM Approved
Resilient seated EPDM coated wedge
Fusion bonded epoxy coating (AWWA C550 compliant)
High pressure rating – 300 PSI
Wide operating temperature range
